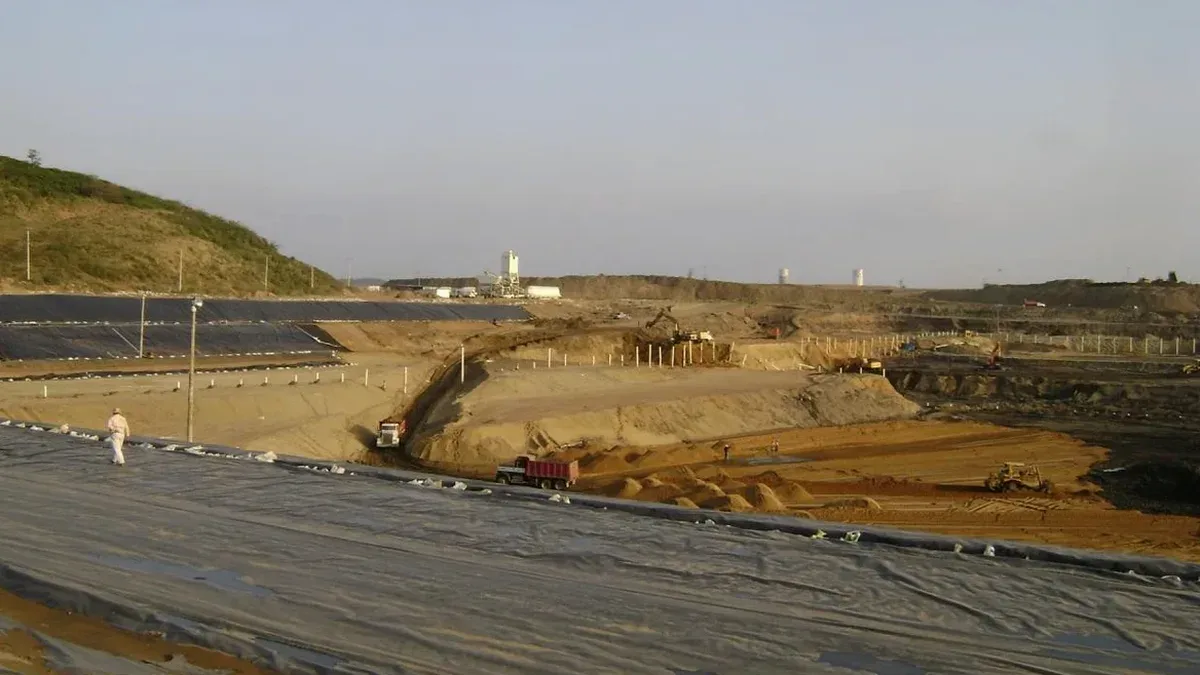

Geotechnical Design of Deep Excavations in Stockton, CA

Geotechnical engineering with regional judgment.

LEARN MORE

Stockton sits deep in the Central Valley, where the San Joaquin River laid down thick sequences of soft clay, loose silt, and organic lenses over millennia—and that geology shapes every deep dig we plan. The high groundwater table, often found within five to eight feet of grade, means even a modest basement push requires a solid dewatering strategy before the first bucket hits the soil. In our experience across projects from the Port of Stockton to downtown infill sites, the real challenge isn’t just cutting a vertical face—it’s managing lateral squeeze in saturated lean clay while keeping adjacent streets and century-old utilities stable. A CPT test run ahead of design lets us map continuous strength profiles through the Youngstown clay and transition zones into the Mehrten Formation, so the shoring system gets calibrated to real stratigraphy, not textbook assumptions.

Deep excavation design in Stockton is a groundwater problem first and a shoring problem second—get the dewatering wrong and no wall section will save the dig.

Our service areas

How we work

What we see repeatedly in Stockton is that conventional soldier pile and lagging designs fail when the soft clay below 15 feet starts creeping under sustained load. The standard approach needs local adjustment: we often specify deeper embedment into the stiffer sand layers and pair the wall with a carefully staged excavation sequence that limits unsupported spans to five feet or less during active digging. For cuts exceeding 20 feet, we model the soil-structure interaction using finite element methods that factor in the rapid pore pressure buildup typical of the San Joaquin basin. The design also integrates slope stability analysis for the open-cut phase, because a shallow slide at the crest can propagate into the shoring system if the surcharge from adjacent traffic isn’t accounted for. Every load case—static, seismic, and construction-stage—gets checked against ASCE 7 minimums, but we push the factor of safety higher in areas near the levees where saturation levels fluctuate sharply between summer irrigation and winter storm flows.
Geotechnical Design of Deep Excavations in Stockton, CA
Technical reference — Stockton

Local geotechnical context

ASCE 7 and IBC Chapter 18 set the baseline for Stockton, but the real risk lies in what those codes don’t explicitly cover: the layered soft clay that can lose 40% of its undrained strength under cyclic seismic loading at the site’s latitude of 37.95° N. Basal heave is the failure mode we lose sleep over—when the excavation bottom blows upward because the weight of the surrounding soil exceeds the bearing capacity of the clay below the subgrade. The San Joaquin Delta’s peat lenses amplify the problem, creating differential stiffness that concentrates stress at the wall toe. A single unmonitored storm drain leak three blocks away can raise the phreatic surface enough to drop the factor of safety below 1.0 in less than 48 hours. We require real-time piezometer data and trigger-based contingency plans that activate additional dewatering wells or brace stiffening without waiting for visual distress at the site.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering1.com

Regulatory framework

ASCE 7-22 Minimum Design Loads for Buildings and Other Structures, IBC 2021 Chapter 18 Soils and Foundations, ASTM D2487 Standard Practice for Classification of Soils, FHWA Geotechnical Engineering Circular No. 4 – Ground Anchors and Anchored Systems, Caltrans Trenching and Shoring Manual

Technical parameters

ParameterTypical value
Design groundwater elevationBased on seasonal monitoring; typically 5–8 ft below grade
Typical shoring systemsSoldier pile & lagging, secant pile walls, diaphragm walls for >40 ft
Lateral earth pressure modelApparent earth pressure diagrams (FHWA) modified for soft clay
Seismic coefficient (kₕ)Per ASCE 7-22 site class; typically 0.15–0.25 for Site Class D/E
Maximum unsupported cut height5 ft (soft clay); 8 ft (stiff alluvium) during staged excavation
Basal heave checkTerzaghi bearing analysis with undrained shear strength (Su)
Monitoring parametersInclinometers, piezometers, and settlement points per 50-ft intervals

Frequently asked questions

How much does a deep excavation design cost in Stockton?

Design fees for deep excavations in Stockton typically range from US$1,980 for a straightforward basement cut with standard soldier pile walls to US$7,220 for a complex multi-level dig requiring finite element modeling, seismic analysis, and a full dewatering plan. The final cost depends on excavation depth, proximity to adjacent structures, and the number of design iterations needed to satisfy city plan check comments.

What triggers a requirement for a deep excavation design in Stockton?

Under IBC Section 1803, any excavation that extends more than 5 feet below grade and will be entered by workers requires a protective system design. Stockton’s high groundwater and soft clay conditions also trigger design requirements for cuts deeper than 12 feet adjacent to public rights-of-way, per the city’s engineering division standards.

How do you handle groundwater during deep digs in the Central Valley?

We design a site-specific dewatering system—usually a combination of deep wells and wellpoints—that lowers the phreatic surface to at least two feet below the deepest excavation subgrade. The design accounts for the seasonal fluctuation typical of the San Joaquin basin, where winter storm flows can raise the water table several feet within a week.

What seismic factors apply to excavation design in Stockton?

Stockton sits in a seismically active region influenced by the San Andreas and Hayward fault systems. Our designs incorporate ASCE 7-22 seismic load combinations, including the horizontal and vertical ground acceleration coefficients for the site’s specific Site Class. For excavations deeper than 20 feet, we run pseudo-static slope stability analyses and check for liquefaction-induced lateral spreading that could overload the shoring system.

How long does the design and approval process take?

A typical deep excavation design package, from subsurface investigation through stamped drawings ready for permit submittal, takes three to five weeks. Complex sites near the Port of Stockton or within the levee influence zone may require additional review time with the city and the San Joaquin Area Flood Control Agency.
